As electronic devices continue to evolve toward higher power density and compact system architectures, efficient and cost-effective thermal management solutions have become increasingly important. Extruded heatsinks remain one of the most widely used cooling solutions due to their excellent balance of thermal performance, manufacturing efficiency, and scalability for high-volume production.
Renxin Thermal Products provides high-performance extruded heatsink solutions optimized for:
High-performance extruded heatsink solutions for advanced thermal management applications
Aluminum extrusion Lines An extruded heatsink is manufactured using the aluminum extrusion process, where heated material is forced through a precision die with the desired cross-sectional profile.
This process allows the production of heatsinks with:
Extrusion technology is especially suitable for high-volume manufacturing because it provides:
Renxin Thermal Products utilizes high thermal conductivity aluminum alloy:
with thermal conductivity up to: 209 W/(m·K)
Many heatsink manufacturers avoid using A6063 due to its “gummy” machining characteristics and the higher process control requirements during manufacturing. However, through optimized extrusion process parameters and advanced production expertise, Renxin successfully manufactures high-performance extruded heatsinks using premium thermal-grade aluminum materials.
This provides:

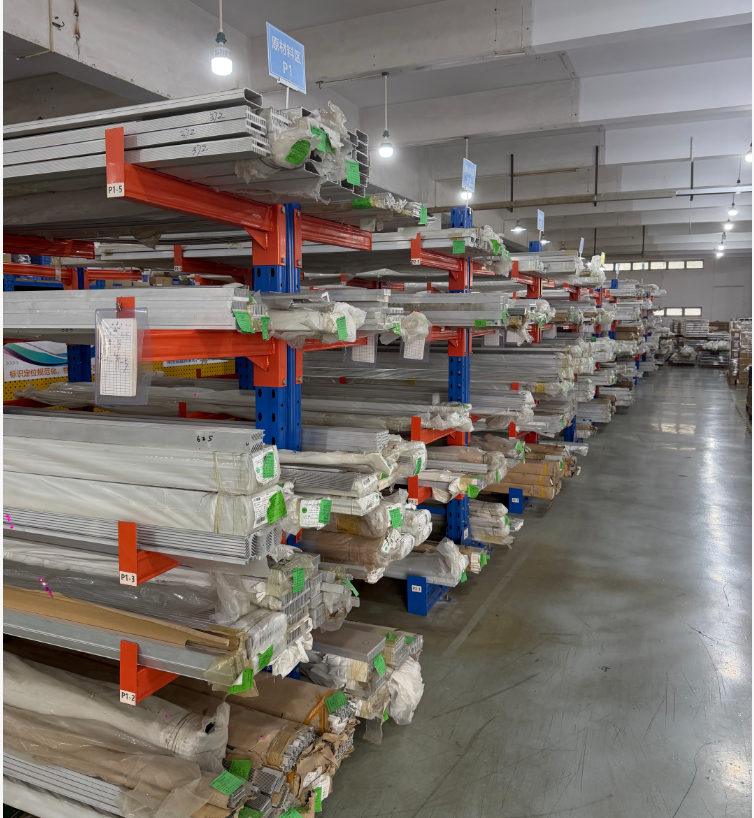

Aluminum Profiles Extruded Capacity Chart Extrusion technology allows highly complex fin structures and heatsink profiles to be manufactured efficiently.
This enables:

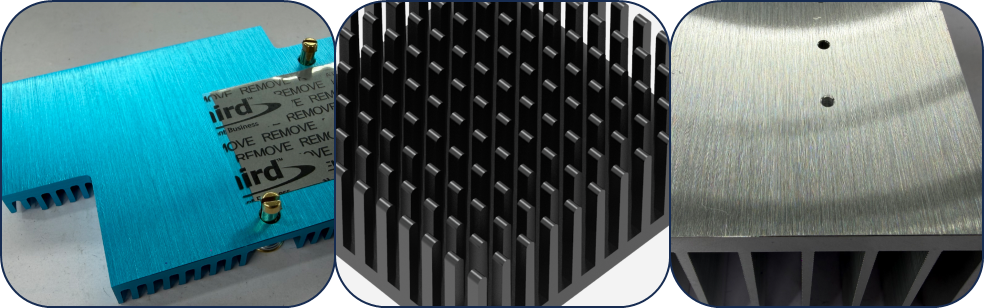

Extruded heatsinks provide smooth surface quality directly from the extrusion process, making them ideal for additional surface treatments such as:
Smooth extruded surfaces are suitable for anodizing and plating
Extruded heatsinks are highly suitable for medium and high-volume production because they require relatively low Non-Recurring Engineering (NRE) investment compared with CNC machining or forging processes

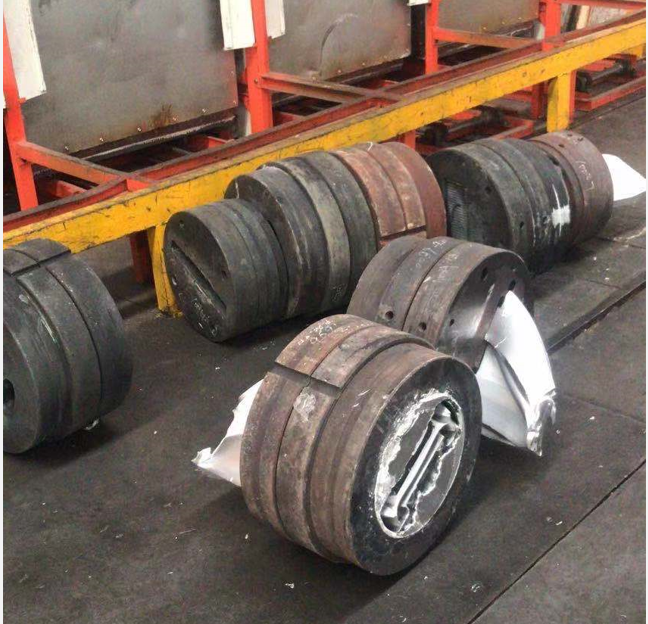

Typical tooling characteristics include:
Once tooling is completed, extrusion offers very competitive production cost for large-volume manufacturing.
Extruded heatsinks can achieve:

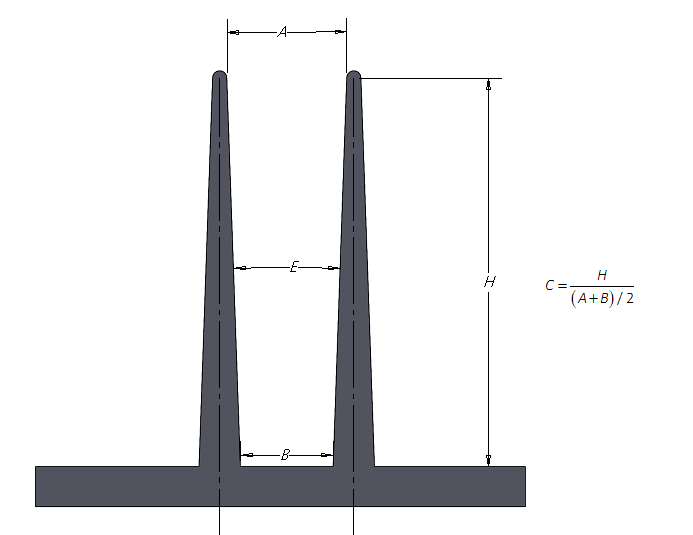

Thin fin structures and aspect ratios up to approximately 20:1

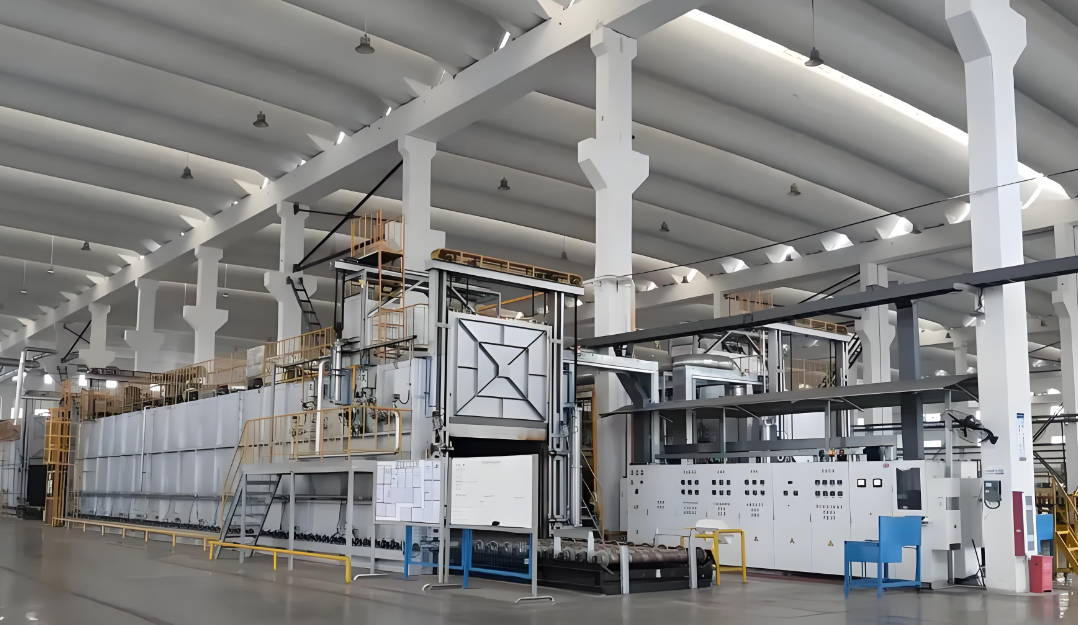

Extruded Profiles T5 Heat Treatment Lines Extruded heatsinks are most cost-effective when minimal post-machining is required.
Additional CNC machining operations may release internal extrusion stress, potentially causing:
To minimize these risks, Renxin Thermal Products utilizes:
to maintain dimensional stability and manufacturing quality
One of the most common extruded heatsink structures is the:
This design uses straight fins running along the full length of the heatsink to maximize heat dissipation surface area and improve natural convection performance.

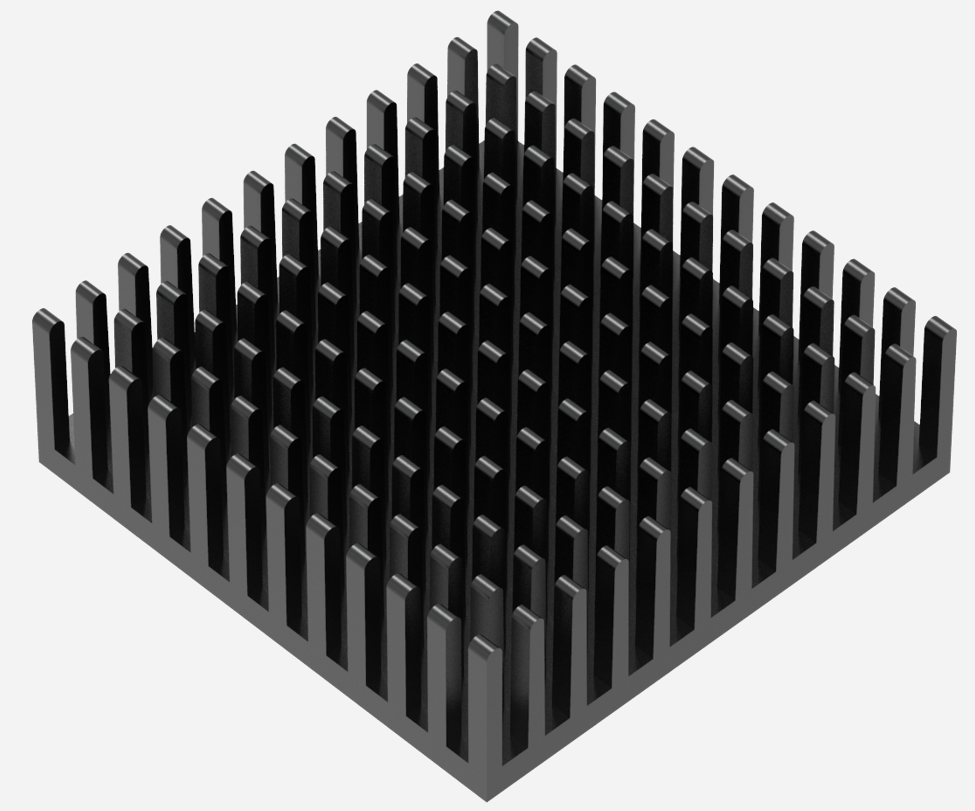

Additional secondary machining can also be applied to create:
which improve airflow turbulence and provide thermal performance similar to elliptical fin heatsinks
Renxin Thermal Products offers a wide range of standard extruded heatsinks that are typically available within a few days
These heatsinks are:
Because standard tooling already exists, customized modifications such as:
can be implemented quickly and cost-effectively.
Extruded heatsinks can also be combined with:
to create:
for higher power thermal management applications.

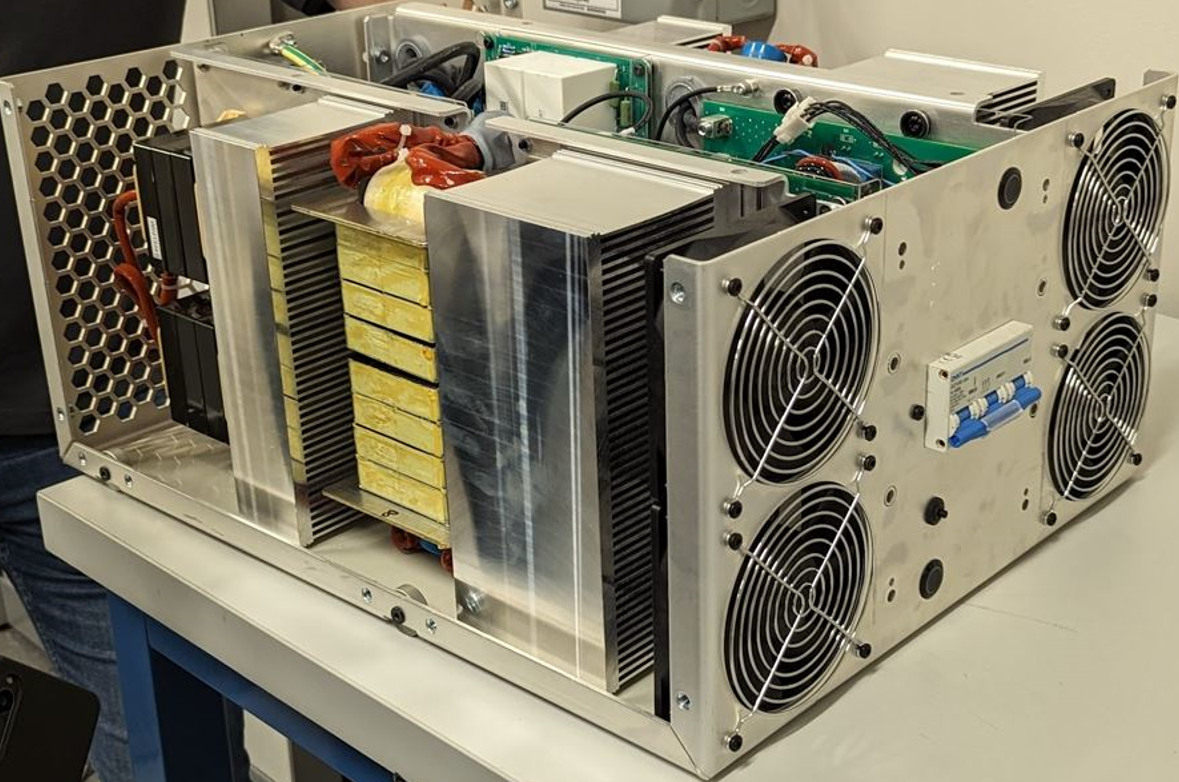

Extruded heatsinks Cooling Aggregates
Extruded heatsinks are widely used in:
With advanced extrusion technology, thermal engineering expertise, and precision manufacturing capability, Renxin Thermal Products delivers reliable, high-performance extruded heatsink solutions for next-generation thermal management applications
| Product Category | Typical Material | Manufacturing Process | Typical Applications |
|---|---|---|---|
| Standard Extruded Heatsinks | Aluminum 6063 (T4 ~ T6) | Extrusion / Cut to Length / Precision Machining / Black Anodizing | Industrial electronics, telecom equipment, automation systems |
| Plate Fin Extruded Heatsinks | Aluminum 6063 T5 | Extrusion + Optional Cross-Cut Machining | Natural convection and forced convection cooling |

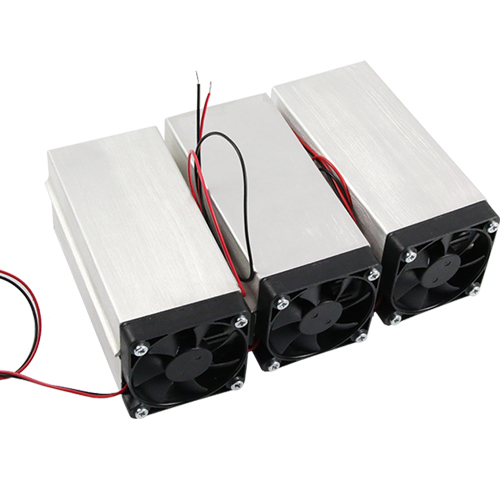

| Active Cooling Heatsink Solutions | Aluminum 6063-T5 | Extruded Heatsink + Axial Fan / Blower / Forced Airflow System | Higher power thermal management applications |
| Custom Extruded Profiles | High Thermal Conductivity Aluminum Alloy | Custom Die Extrusion + CNC Machining + Surface Treatment | AI servers, optical transceivers, EV charging systems, power electronics |
Share your extruded heatsink dimensions, material requirement, thermal load, fin structure, surface treatment, production volume, and application requirements. Our engineering team can support customized extruded heatsink solutions from standard profiles to custom high-volume production.
