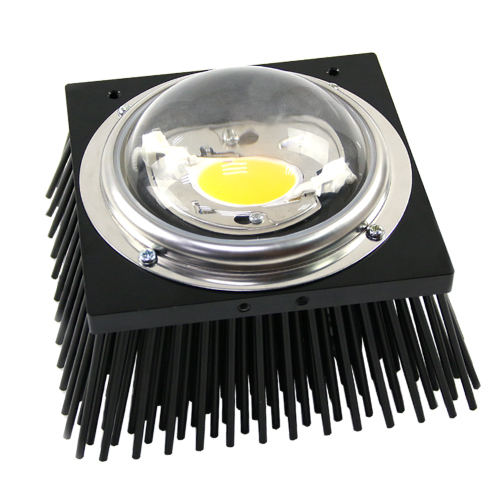

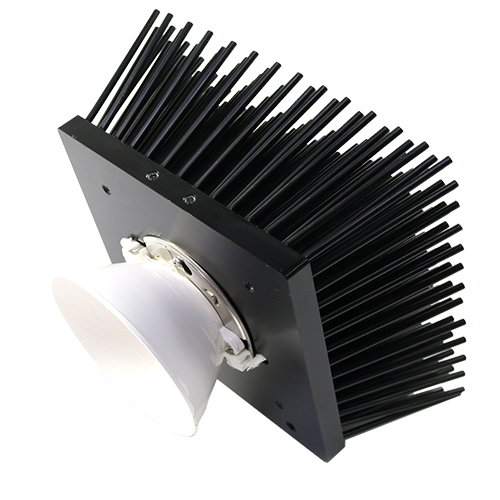

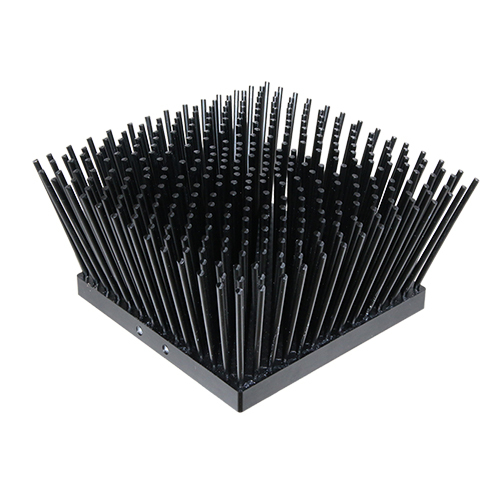

RX613-125-A4 Forging Heatsink for COB grow lights 125[7.09]x70[2.755] 95 Watts
No.RX613-125-A4
The Pin heatsink series of LED lighting modules is engineered to allow lighting designers and luminaire manufacturers to quickly incorporate Cree CXB3590 , Luminus CXM-22 Citizen CLU-048 , Bridgelux Vero 29 into their lighting designs
Feature
– Splayed pin arrangement and number of pins for optimum air flow
– Suitable for forced and free convection
– Excellent thermal conductivity by the alloy material (Al1070 /Al97% ,5; 220 W/mK) and homogeneous arrangement
– Constant heat dissipation in the base and the pins in the direction of heat flow
– Low weight achieved by optimised geometry
– Components fastened using screw, adhesive foil or clamps
– Customer-specific modifications and special designs
– Other pin-lengths and surfaces on request

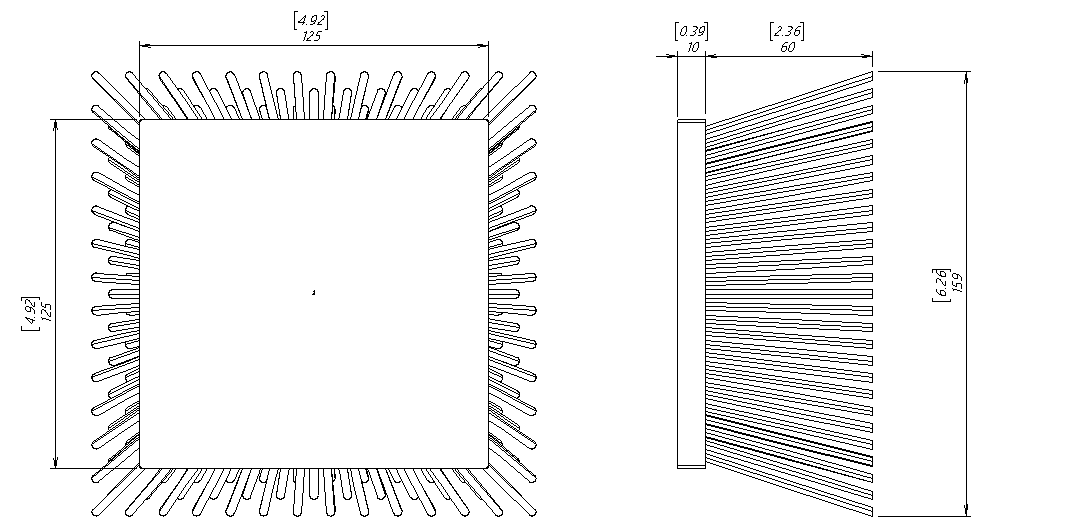

– Surface: Black Aondize Drawing Product Parameter PN RX613-125-A4
Thermal resistance: 0.67 K/W
Material : AL1050(99.5%)
Surface : A4: Black Anodize
Total Height: 70[2.76]
Base thickness: 10[0.39]
Pin Height: 60[2.36]
Pin Type: Splayed Pin
Geomectric: 125[4.92]x 125[4.92]
Pin Diameter Ø3.0mm
Pin Count: 365 Pieces
Weight: 0.863 Kg
Notes: Pre (CXB3590/Bridgelux Vero 29 COB/) Drilling, threading and milling on customer request Thermal Preformance
Service Service
Thank you for choosing to incorporate the Foring Pin Fin Heatsink series, If you need assistance, Renxin Thermal will support you with:
Engineering assistance for product design and manufacturability,
Thermal testing assistance for CFD analysis,Heasink / Cooling System Design,
Base Price / Lead Time / in Stock
Again thank you, and we look forward to working with you,
For technical information and support : info@renxin-precision.com
For price / sample details, please contact our Sales Office : sales@renxin-precision.com
